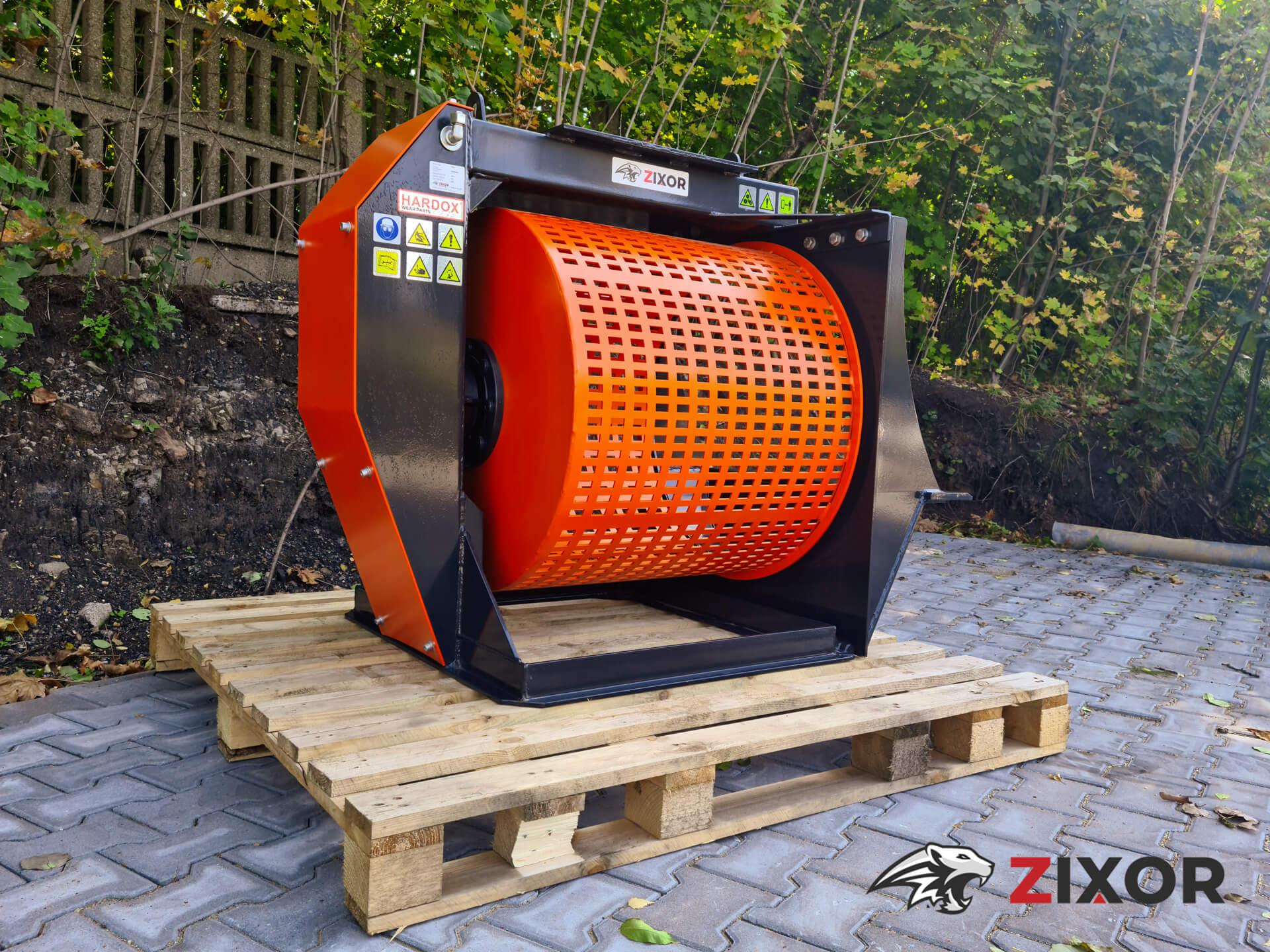

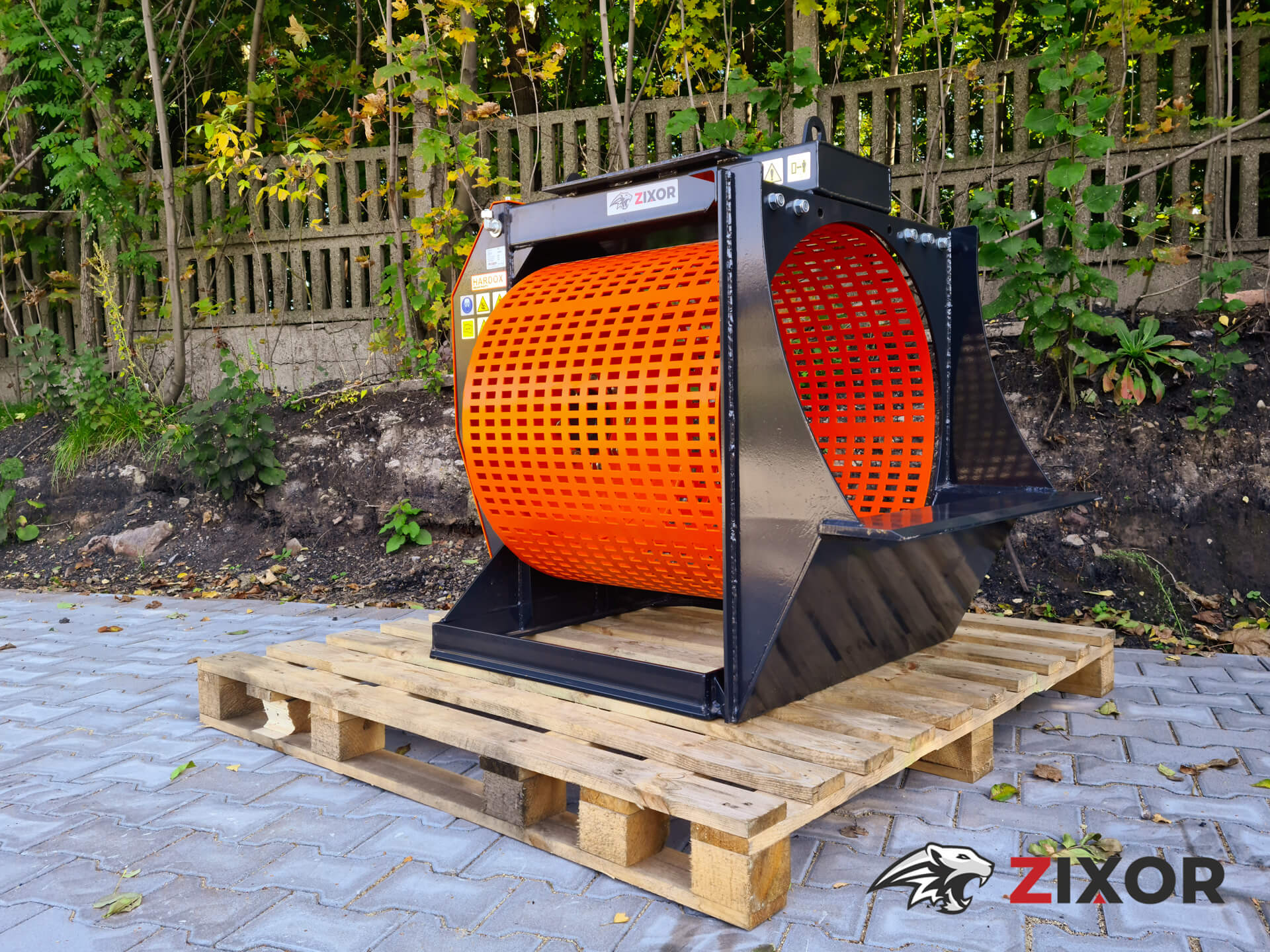

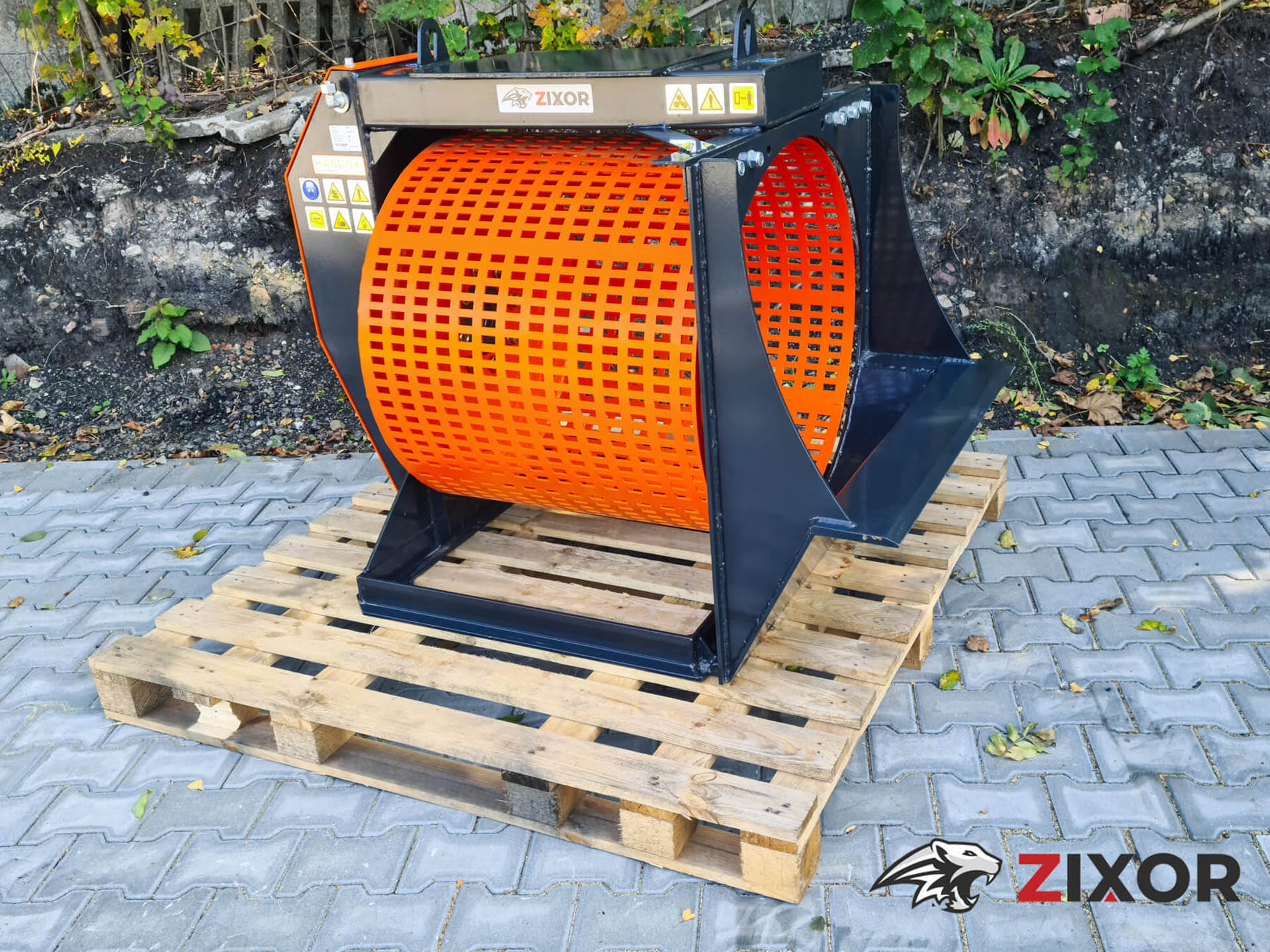

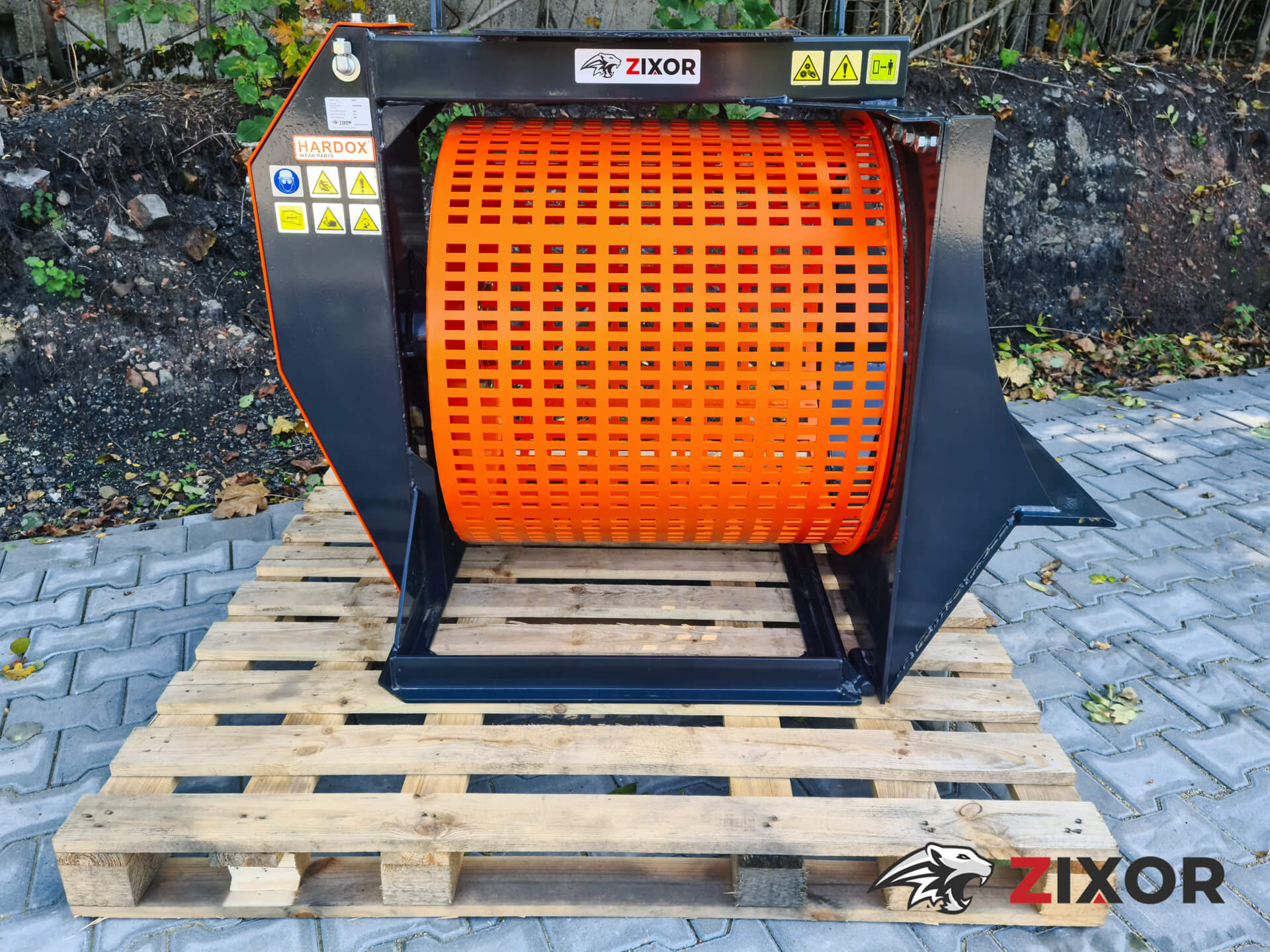

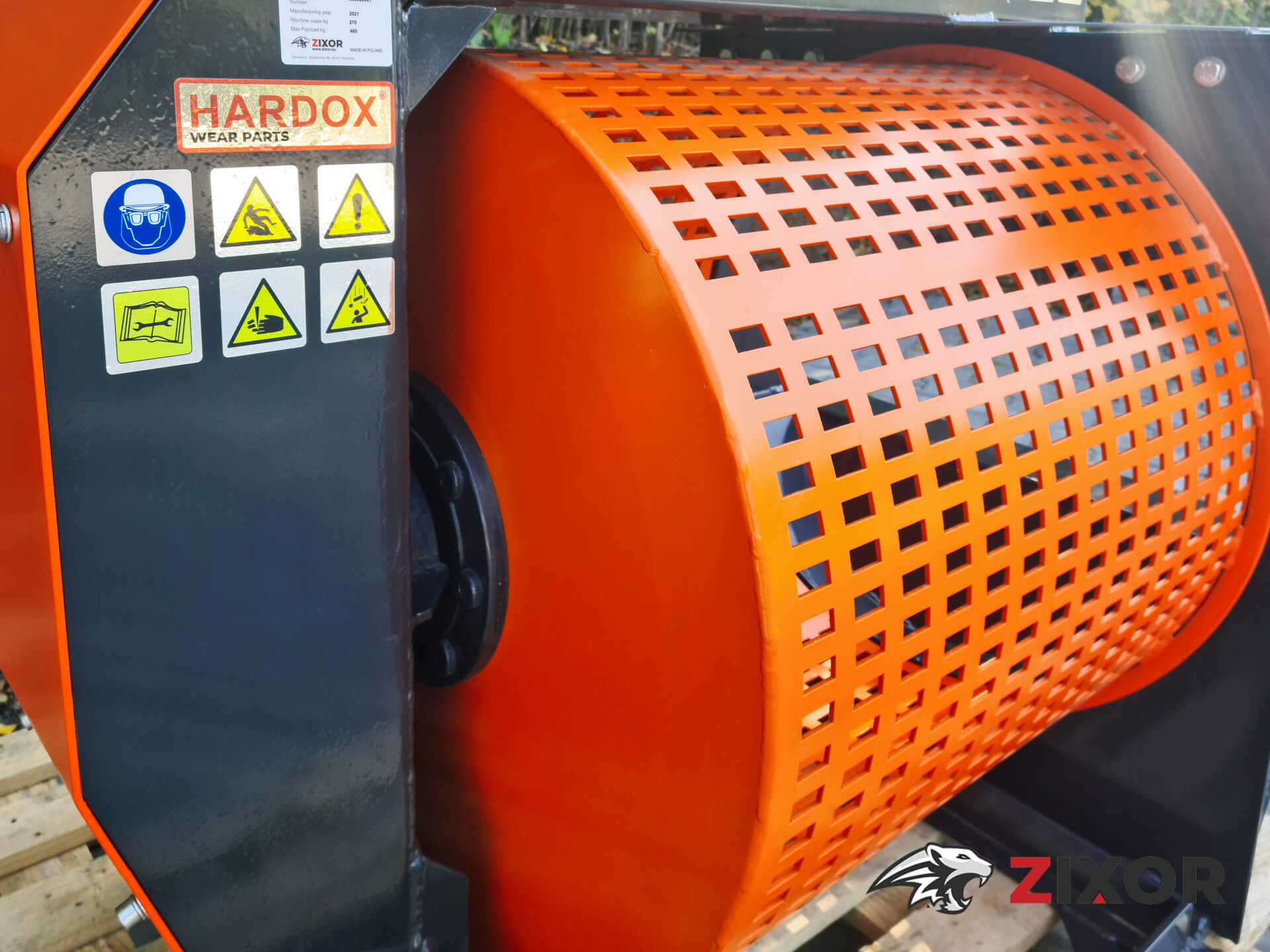

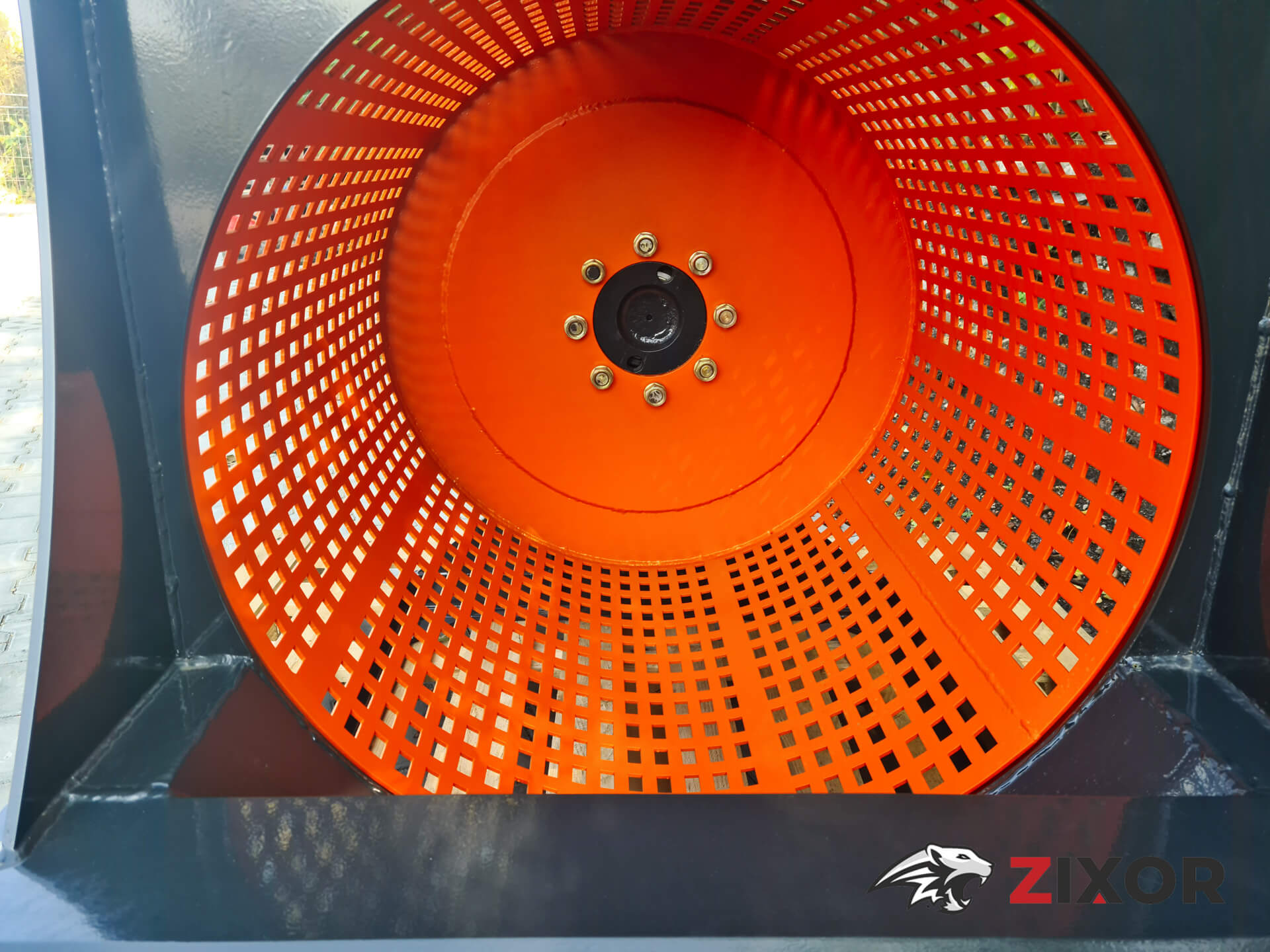

SCREENING BUCKET ZIXOR X350
A solid screen with a hydraulic drive, made of HARDOX® 500, S355J2 steel and the highest quality components. Dedicated to gardening, engineering and construction industries. The X350 model is dedicated to medium-sized machines weighing from 5 to 8 tons
| TECHNICAL DATA OF THE SCREENING BUCKET ZIXOR X350 | |
|---|---|
| Basket (sieve) | 600 mm |
| Basket (sieve) | 825 mm |
| Total volume: | 0.35 m³ |
| Load capacity (max): | 440 kg |
| Weight: | 370 kg |
| Overall dimensions of the bucket | |
| Length: | 1465 mm |
| Width: | 885 mm |
| Height: | 1100 mm |
| Specification | |
| Screen material | HARDOX® 500 TUF |
| Blade material: | HARDOX® 500 TUF |
| Support frame material: | S355J2 high-grade steel |
| Parametry maszyny nośnej | |
| Masa maszyny nośnej: | 5-8 t |
| Przepływ oleju: | 20- 80 l/min |
| Ciśnienie robocze: | max 120 bar |
SCREENING SIEVE CATALOG, CAPACITY FOR MODEL X350 - HARDOX® 450 STEEL
| SIEVES WITH RECTANGULAR | MESH DIMENSIONS |
|---|---|
| ZX1030 * | 10 x 30 mm |
| ZX1530 | 15 x 30 mm |
| ZX2540 | 25 x 40 mm |
| ZX3035 | 30 x 35 mm |
| SIEVE WITH SQUARE | MESH DIMENSIONS |
| ZS2020 | 20 x 20 mm |
| ZS3030 | 30 x 30 mm |
| ZS4040 | 40 x 40 mm |
| ZS5050 | 50 x 50 mm |
| ZS6060 | 60 x 60 mm |
| ZS7070 | 70 x 70 mm |
| ZS8080 | 80 x 80 mm |
| ZS9090 | 90 x 90 mm |
| ZS1000 | 100 x 100 mm |
* The ZX1030 sieve (10 X 30 mm) is used to select materials with a moisture content of < 20%
